IN-Vent & V-300 used on Walt Disney Museum

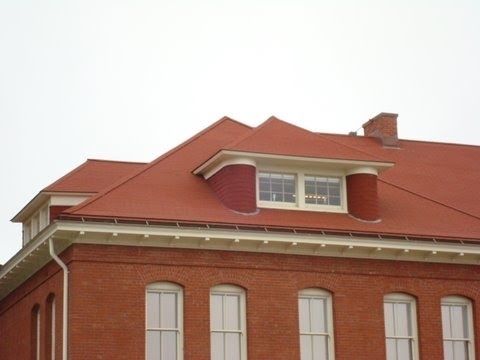

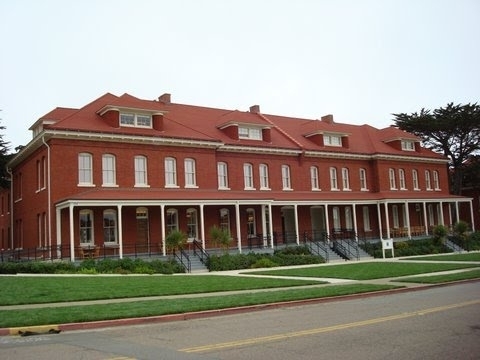

Three buildings with a lot of history in San Francisco are being remodeled for the Walt Disney Family Museum, and Cor-A-Vent was used to provide the ventilation. The Presido, located within San Francisco's Golden Gate National Recreation Area, was once an active military installation for three different countries, beginning with Spain in 1776 before changing hands to Mexico and finally the United States until 1989. Today, three Presidio buildings have been converted to house the Disney museum. Because of its unique and historic architecture, IN-Vent on-the-roof intake ventilation was installed at the bottom of the roof to provide airflow into the attic space, and the V-300 ridge vent was chosen for the exhaust at the top.















Revolution installation in South Bend, Ind.

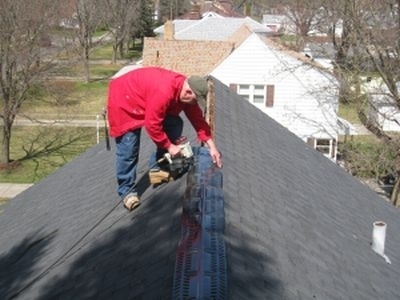

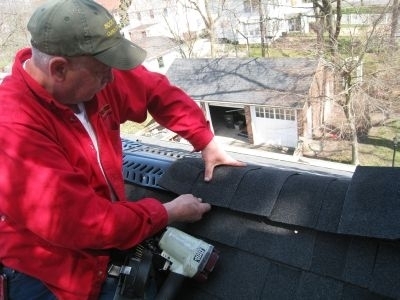

Contractor Rick Scott, the owner of Scott & Son Construction, recently installed Cor-A-Vent's new product Revolution Rolled Ridge Vent on the ridge of a house he remodeled in South Bend, Ind. According to Rick, the product went down smooth and easy and, as you can see in the pictures below, makes for a crisp, clean, well-defined ridge line. Thanks to Rick for sharing his pictures of a job well done!















Yellowhammer LLC, Purlin Vent project

Rami Deeb, the owner of Yellowhammer, LLC construction, recently shared pictures of a renovation and addition project in Tallahassee, Fla. that utilized the Purlin Vent system for providing continuous airflow beneath a standing seam metal roof.

According to Mr. Deeb: "The purlin vent has been used to vent the air space between the reflective peal and seal underlayment and the energy star galvalume standing seam metal roof.

"Additionally, the architect specified the purlin vent to be installed on the fascia board (over roof cemented galvanized eaves metal) and to cut the purlins at the top on a 45 degree angle (facing the roof) and then install the purlins 16" on center over the roof decking.  We are also installing a color matched vented piece of metal, bent at a 1" 90 degree angle to cover the purlin vents so that you can not see them from the ground.  After that, we are installing the color matched eaves metal to cover the rest of the purlin vent on the fascia and then we finish the roof installation venting all the ridges and hips so that the the air may circlulate into the fascia and then vent upwards and on out from there."

The final result looks great:

Purlin Vent is installed on the eaves and rake edges to allow airflow through the roof system.

Prepping for metal soffit installation. Purlin Vent provides 10 sq. in. of NFVA per lineal foot for intake & exhaust.

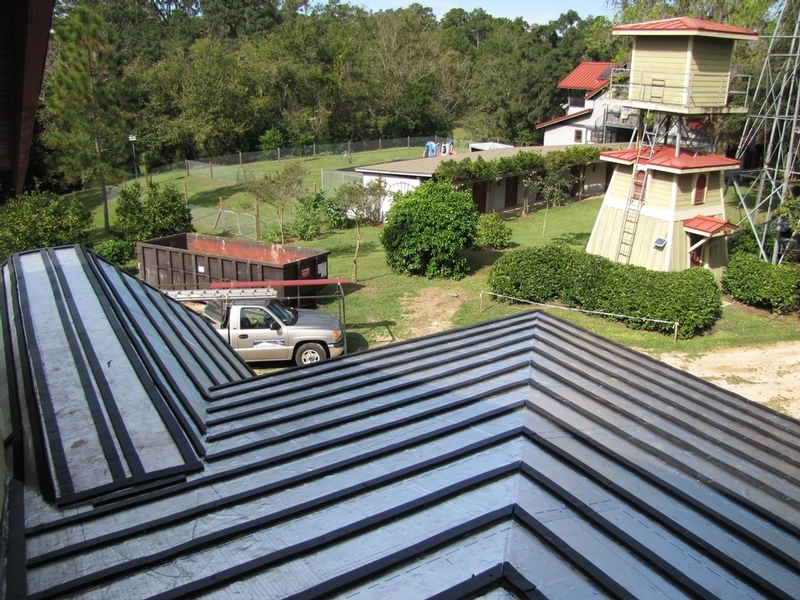

Purlin Vent was installed 16" on center over the entire roof. In the background stands a windmill.

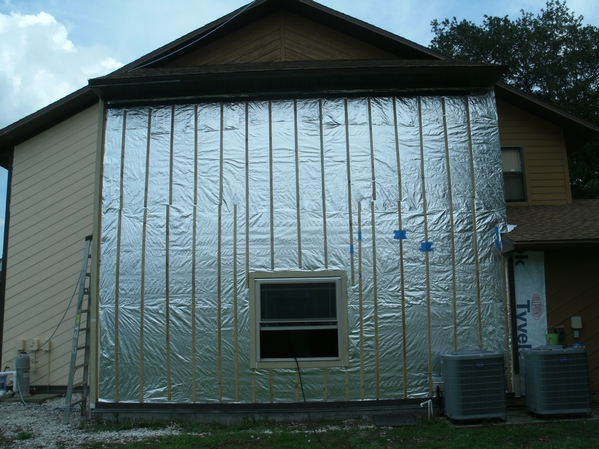

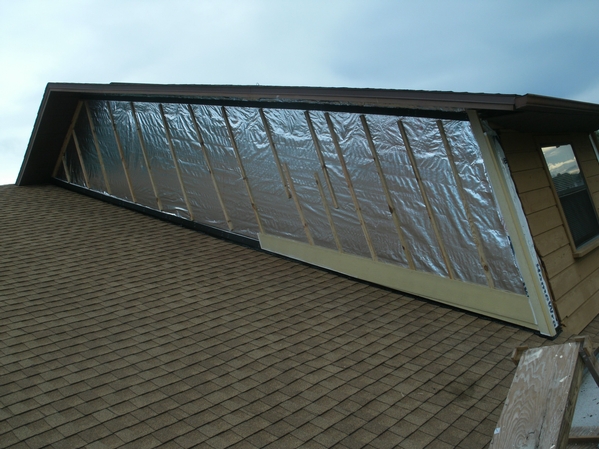

The vent was installed over reflective underlayment to help reduce the buildup of hot air under the metal.



Solar panels on top of the roof collect the sun's energy and add to the home's overall energy efficiency.

Another view of the Purlin Vent on the addition, prior to the installation of the standing seam metal.



Michigan Flywheelers Museum, SV-5 project

Volunteers helped with a recent renovation project at the Michigan Flywheerlers Museum in South Haven, Mich. and Cor-A-Vent's SV-5 Siding Vent was used to provide a rasinscreen behind the new wood siding that was installed. Check out the Museum's website here for more information. Below are a couple photos of the installation. For more info on Cor-A-Vent's Siding Vent products, check out the Siding Vent page here.

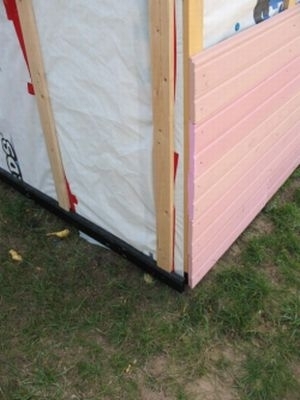

SV-5 Siding Vent is installed with 3/4" thick furring strips behind clapboard siding to provide a rainscreen system that will drain away moisture and vent between the exterior cladding and the house wrap.

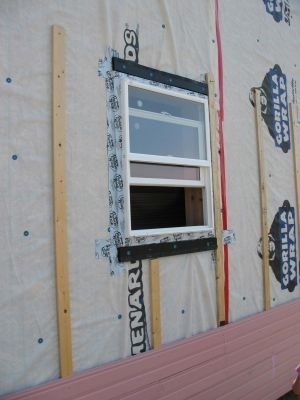

SV-5 is installed above and below the windows. (Click link for an end view detail.)  Moisture buildup behind wood and fiber cement siding can shorten the life of your home's exterior.















Blog

Latest Blog Posts



Revolution used for Joplin, MO project

Cor-A-Vent recently donated Revolution Rolled Ridge Vent to the Tulsa, OK Habitat for Humanity to be used in their re-build project in Joplin, MO to help re-build that community in the wake of the devastating May 22 tornado. You can read about the Ten for Joplin project here: http://www.tenforjoplin.org/



(Habitat-Tulsa press release) JOPLIN, Mo. – Sept. 8, 2011 – The Tulsa and Joplin Area Habitat for Humanity teams, surrounding businesses and the City of Joplin are partnering on one of the most aggressive rebuilding efforts since last May’s devastating EF-5 tornado. The Ten for Joplin project team plans to build 10 homes during a 16-day period for low-income families in Joplin by Thanksgiving.

Community leaders announced the project at a news conference on the site of one of the new homes. The build is scheduled between Oct. 29 and Nov. 13 and will be take place in a neighborhood of Joplin that was in the affected area.

As the citizens of Joplin move into the rebuilding phase of their recovery, the need to help those who lost their homes has become evident. Of the nearly 7,500 homes damaged, some 43 percent were uninsured.

Ten for Joplin’s vision is to ignite volunteer efforts to rebuild Joplin by setting an example of what can be accomplished when businesses and communities come together to help one another.

“This is an exciting partnership that will not only provide 10 homes for 10 families, but will demonstrate the many benefits communities gain when working together,” said Joplin City Manager Mark Rohr. “As part of the Midwest, Tulsa Habitat and all of their volunteers and sponsors recognize the powerful reward one gets when helping their fellow neighbor.”

Donations and volunteers are needed to make this project a reality. The goal is to raise $800,000 in funds plus gifts in-kind and get 3,000 volunteers to support us on the blitz build. To date, Ten for Joplin has secured $400,000 toward this goal.

Companies that have signed up to be house sponsors are Hilti, Henry & Anne Zarrow Foundation, BKD CPAs & Advisors, Samson, TD Williamson, Inc. and Chase. Advanced Industrial Devices, Inc. also has signed up to sponsor half a house. Gift in-kind donations have been provided by Hilti, Thermal Windows, Inc. and Cor-A-Vent. United Way contributed tornado relief funds to help with the purchase of the ten lots.
