Ventilation Products

  Roof2Wall    V-300®    Fold-A-Vent    V-600®/TE    S-400/PS-400
Raft-A-Vent RS-400   IN-Vent®  SV-3 & SV-5 Siding Vent   Purlin Vent


Roof-2-Wall Ventilation System

Roof-2-Wall



Roof-2-Wall Vent does just what it says – it’s a ventilation package for the tough-to-vent detail where a pitched roof meets a vertical wall. Roof-2-Wall Vent incorporates the Active Weather Foil technology and enhanced snow screen feature of our X-5 ridge vent line to stop rain and snow at the point of entry.

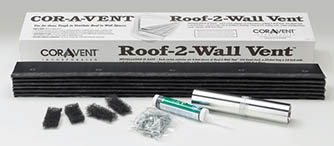

Each carton contains six 4-foot pieces (24 lineal ft.) of Roof-2-Wall Vent, a 25-foot long x 14-inch wide roll of flashing, one bag of 2 1 /2" nails and four EC-400 Roof-2-Wall end caps. 8.5" NFVA

Click for more info on the Roof-2-Wall Ventilation System



V-300®



V-300® - 11", 8 1/2"
An ideal ridge vent with a low 5/8" profile that virtually disappears beneath the cap shingle and even lower price - the best value in the industry.
• Available in 11", 8 1/2", & 7" widths
• Power-Nailable
• 13.5" NFVA
• Use on pitches from 3/12 to 16/12
• Regular and Enhanced versions
• 12 - 4' pieces per carton or bundle
• V-300®E products are ideal for hip use.


Click for more info on the V-300®, Ventilation Product

Fold-A-Vent



FAV-20-11", 8 1/2" & 7"
A flat, continuous 20' folded ridge vent that won't roll back up and won't hump up under the cap shingle. Low 5/8" profile virtually disappears beneath the cap shingle.

• Available in 11", 8 1/2" and 7" widths
• 13.5" NFVA
• Power-Nailable
• FAV-E products are ideal for hip use.
• Use on pitches from 3/12 to 16/12
• Regular and Enhanced versions (7" not Enhanced)

Click for more info on the Fold-A-Vent, Ventilation Product

V-600® & V-600®TE



V-600® - 11" & 8 1/2"
NEW V-600®E in 11" and 8 1/2" widths are the same great product as regular V-600® but with an added Enhanced Snow Screen™ to prevent fine snow from entering the ridge vent.
The highest airflow in the industry for nearly every pitch - from 3/12 to 16/12.
• Available in 11" and 8 1/2" widths
• 20" NFVA provides superior ventilation
• Radiused peak keeps the ridge well defined
• 12 - 4' pieces per carton

V-600®T & V-600®TE
• 1" x 3 1/4" x 4' profile
• 10" NFVA, per lineal foot, per piece
• Covers: 48 l.f. ridge, 96 l.f. roof to wall
• 24 - 4' pieces per carton


Click for more info on the V-600® and V-600®TE, Ventilation Products

S-400 & PS-400



S-400 Strip Vent
Continuous strip soffit vent that's perfect for hard-to-vent eave details - from zero overhang to open rafter and everything in between.
• Narrow 1" profile easily concealed
• 10" NFVA per lineal foot
• Available in white, black, or tan
• Now available with type 304 Stainless staples - Special order Item
• 24 - 4' pieces per carton


PS-400
• 1" x 3/4" x 4' profile ideal for 1x soffit panels
• 10" Net Free Vent Area per lineal foot
• Available in white or black
• Now available with type 304 Stainless staples - Special order Item
• 48 - 4' pieces per carton

Click for more info on the S-400 and PS-400 Soffit Vents, Ventilation Products

Raft-A-Vent RS-400



RS-400
• Power nail to the bird block for quick installation
• 18.75" Net Free Vent Area per piece
• Available in white or black
• Now available with type 304 Stainless staples - Special order Item
• 48 - 22.5" pieces per carton

Click for more info on the Raft-A-Vent System, Ventilation Products

IN-Vent®



IN-Vent® is an on-the-rooftop intake ventilation product, when traditional soffit vents can not be used
• Low 1" profile easily concealed
• 10" NFVA per lineal foot
• 16 four-foot pcs. (64 lineal ft.) per carton.


Click for more info on the IN-Vent®, Ventilation Product

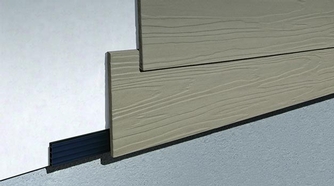

SV-3 & SV-5 Siding Vent



• Helps to prevent paint from peeling.
• SV-3 = 5 Sq. In. NFVA per lineal foot.
• 7/16" x 3" x 4' cross section.
• SV-5 = 8.5 Sq. In. NFVA per lineal foot.
• 3/4" x 3" x 4' cross section.
• Prevents moisture from being trapped behind the siding.
• Made from heat resistant polypropylene.
• Power nailable


Click for more info on the SV-3 & SV-5 Siding Vent, Ventilation Products

Purlin Vent



• Provides cross ventilation both horizontally and vertically between the purlins.
• Provides a thermal break with an R value of 3.1
• Net free vent area (NFVA) of 40 sq. in. per 4' section.
• Made from thermally stable, crush resistant polypropylene (PP) sheets
• Doesn't compress over time, so roofing & siding screw holes don't elongate and leak.
• Supplements ASHRAE 90.1 - 1999 Model Energy Code (MEC) requirements when vapor barriers greater than 1 perm are used.
• NAIMA, NIA and 2000IEEC call for cold side ventilation as a design consideration in controlling condensation and meeting required U values of the Model Energy Code.

Click for more info on the Purlin Vent, Ventilation Product
