Roof Ventilation Systems: Cor-A-Vent V-600 & V-600T/TE Ridge Ventilation System

V-600 on Shingles V-600 on Cedar Shakes V-600TE on Metal Roof



V-600 & V-600T/TE Specifications


V-600 - 11" & 8 1/2"
The highest airflow in the industry for nearly every pitch - from 3/12 to 16/12.
• Available in 11" and 8 1/2" widths.
• 20" NFVA provides superior ventilation.
• Radiused peak keeps the ridge well defined.
• Available boxed or banded (boxed product slightly more).

12 - 4' pieces per carton

V-600T & V-600TE
• 1" x 3 1/4" x 4' profile
• 10" NFVA, per lineal foot, per piece
• Covers: 48 l.f. ridge

24 - 4' pieces per carton

Key Benefits

• 20 sq. in NFVA per lineal foot.
• 1 inch high, low profile design.
• 2 widths to choose from:  11" and 8 1/2".
• Use on all slopes from 3/12 to 16/12.
• Crush Proof Design.
• Made from heat resistant polypropylene.
• General Installation Instructions (507 Kb)
• For dimensions open the End View 1 PDF & End View 2 PDF files.
• For dimensions if you have AutoCad open the End View 1 DWG & End View 2 DWG files.



You can also view our "Balanced Ventilation How it works" (138KB) FAQ sheet.
• Frequently asked questions (FAQ) click here.
• Click here for our complete list of Technical Drawings.

Product Packaging and Shipping Information for V-600 and V-600CS
Pcs per Unit Accessory Items Included Shipping Weight per Box
12 - 4 foot pcs 2 1/2" Nails & 6 Aluminum End Caps 30 lbs

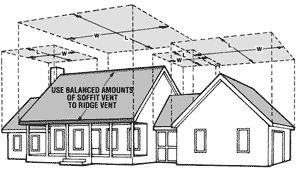

Figure your Ventilation Needs

Enter your Square footage of your building footprint below and click "Calculate" to find the amount of Lineal Feet of V-600 you need for your project.

Specify your vent ratio:
1/300 ratio 1/150 ratio
Building Footprint : sq. feet.
You need Lineal feet of V-600.

Note: Remember to provide balanced soffit ventilation also.
